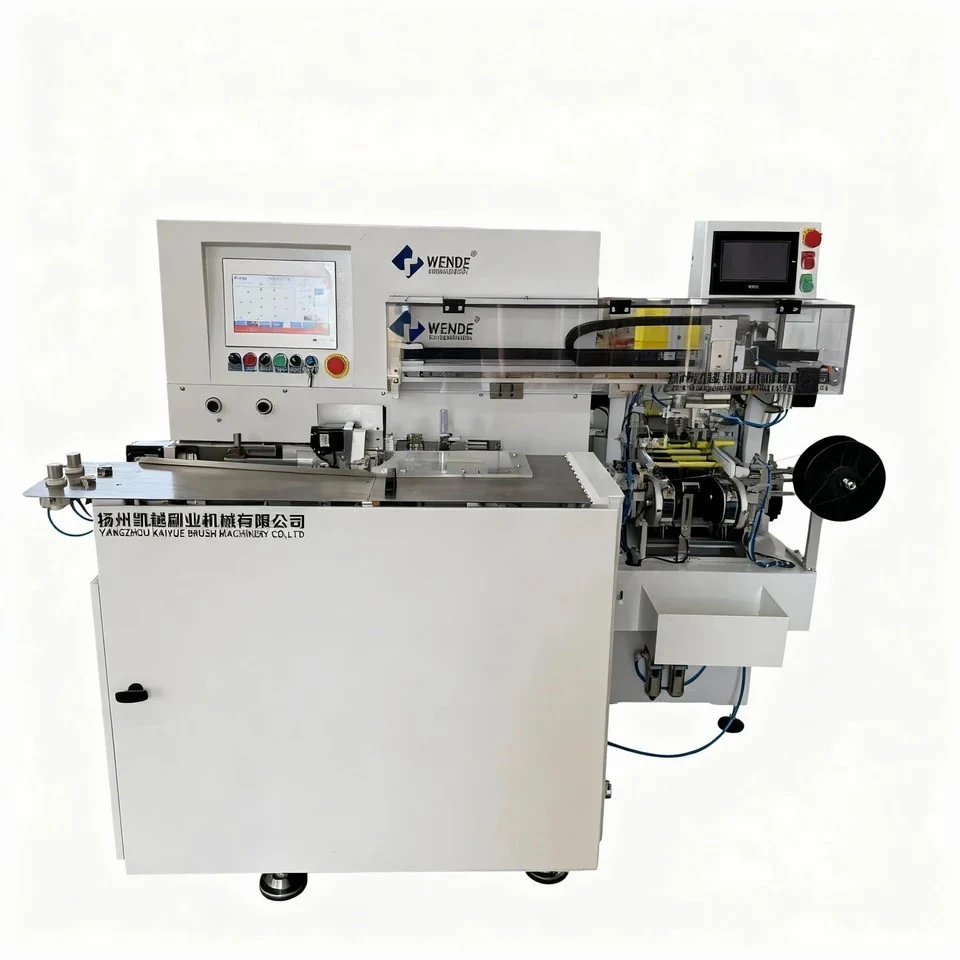

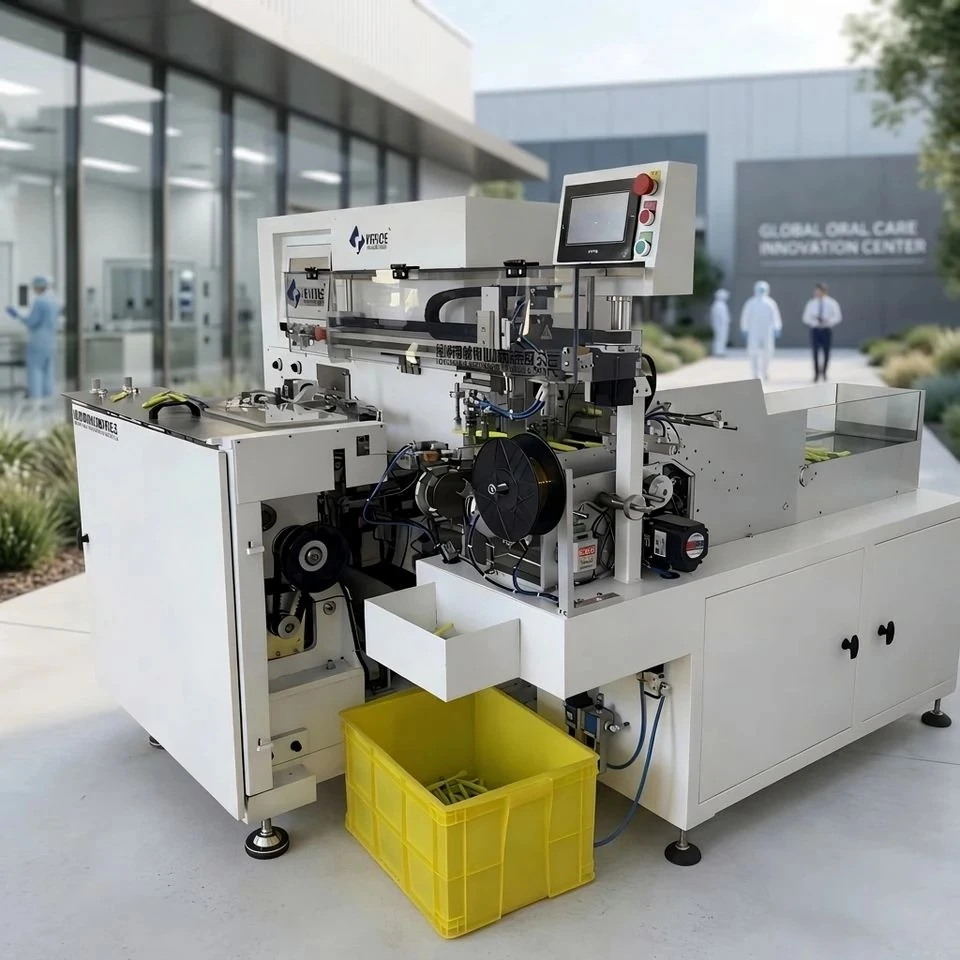

Name: China 7-Spindle 1.2-5.8mm Custom High-Speed Special-Hole Toothbrush Tufting Machine Manufacturers Suppliers Factory - Kaiyue Brush Machinery
Brand: KAIYUE
SKU: 314923914

Description

Send Inquiry

Product Introduction

When a line requires controlled bristle tufting, 7-Spindle 1.2-5.8mm Custom High-Speed Special-Hole Toothbrush Tufting Machine provides an automatic equipment option based on the source configuration. In this listing, Speed: 500-700 holes per min; power(w): 2000 W; voltage: 220 V. It is particularly relevant when the project involves replacement of a manual process. The operating review for this page emphasizes repeatable positioning of each brush handle. Before ordering, confirm the brush dimensions and process sequence so the machine can be matched to the real product.

Key Features

Process coverage: Speed: 500-700 holes per min
Selection reference: power(w): 2000 W
Production focus: voltage: 220 V
Recorded configuration: Spindle quantity: 7 Piece
Operating reference: Hole Diameter: 1.2-5.8mm

Technical Specifications

voltage	220 V
Automation Grade	Automatic
power(w)	2000 W
core components	PLC
warranty	1 Year
machinery test report	Provided
video outgoing-inspection	Provided
place of origin	Jiangsu, China
Weight (kg)	850
brand name	Kaiyue
*Dimension(lwh)*	123012301360mm
Speed	500-700 holes per min
Hole Diameter	1.2-5.8mm
Spindle quantity	7 Piece
Journey X axis	50 mm
Journey Y axis	25 mm
Air pressure	0.4-0.6Mpa
Frequence	50 HZ
Selling Units	Single item
Single volume	0 cm³
Single gross weight	0.0 kg
Power	2000W

Product Images

product-960-960

Applications

Controlled Bristle Tufting for Replacement Of A Manual Process
Use this configuration when planning controlled bristle tufting for replacement of a manual process, while checking repeatable positioning of each brush handle against the brush styles and output targets stated in the source product data.

product-750-802

Kaiyue Brush Machine manufacturing facility and workshop

product-750-467

Product development, manufacturing, testing, and export preparation

FAQ

Q: Can the machine be customized for our factory?

A: Yes. Provide your product dimensions, brush layout, material information, and capacity target. We will propose the required tooling and machine options around the listed speed of 500-700 holes per min.

Q: Who handles engineering and export service?

A: Kaiyue's factory team handles the equipment, and the export team coordinates specifications, contracts, documents, and delivery with overseas buyers.

Q: Can our team perform a factory acceptance check?

A: Yes. A factory acceptance check may be arranged before shipment, either by your team or an appointed inspection company.

Q: Do you welcome factory audits and visits?

A: Yes. Customer visits and agreed factory reviews are welcome at our Yangzhou, Jiangsu facility. Advance scheduling is recommended.

Q: What packing method is used for export?

A: The packing plan is selected for the machine size and shipping route. Final dimensions, marks, and transport requirements are confirmed before dispatch.
