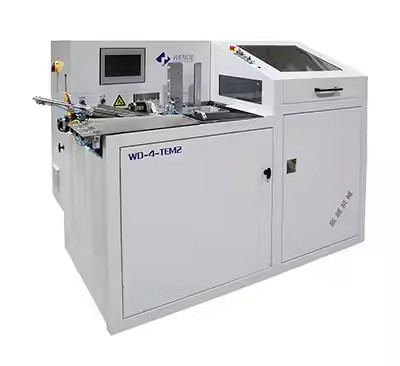

Toothbrush Tufting Trimming Polishing Machine
The Toothbrush Tufting Trimming Polishing Machine integrates tufting, trimming, and polishing into one system, making toothbrush production faster and more efficient. With CNC control and precise cutting technology, it delivers smooth brush heads and consistent quality. Easy to operate, low maintenance, and energy-saving, this machine is an ideal choice for manufacturers seeking high productivity and cost reduction in toothbrush manufacturing
|
Item |
Description |
Unit |
Parameter |
|
1 |
Max Speed |
Holes/min |
750 |
|
2 |
Maximum brush holes |
Holes/Piece |
≤100,000 |
|
3 |
Hole Diameter |
mm |
1.5-2.8 |
|
4 |
Spindle quantity |
Piece |
2+2 |
|
5 |
Journey X axis |
mm |
48 |
|
Jouney Y axis |
25 |
||
|
6 |
Maximum program quantity |
Piece |
2000 |
|
7 |
Air pressure |
Mpa |
0.6-0.8 |
|
8 |
Power voltage, frequence |
V,HZ |
220,50 |
|
Machine Power |
KW |
3 |
|
|
9 |
Contour size(LxWxH) |
mm |
1400x1250x1250 |
|
10 |
Weight |
KG |
490 |
Machine Technical Parameter
|
Control System: |
PLC/Controller |
|
Disturbance Display: |
Chinese edition |
|
Safety Protection: |
Overload, Short circuit protection |
|
Lubrication: |
Auto Lubrication System |
|
Main Speed Control |
Frequence Lnventer |
|
Fiber Box |
Two Colours Box |
FAQ
| Q: Does the machine consume a lot of electricity? |
| A: Our equipment adopts energy-saving design, which saves 15%-20% energy consumption compared with traditional equipment. |
|
Q: Can bristle patterns be customized? A: Yes, almost any pattern can be programmed using our software. |
|
Q: Is there an option for soft bristles? A: Yes, the machine can handle ultra-fine filaments for soft brushes. |
|
Q: How are toothbrushes counted before packing? A: A built-in sensor at the end of the conveyor counts the finished brushes. |
|
Q: How long does it take to switch packaging formats? A: This depends on your packaging line, not our machine. |
